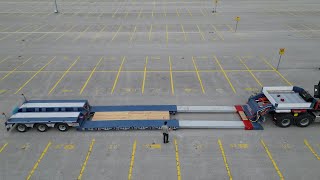

New Castromax Treyler 2025 model 3axs Hydraulic steering pool and extendable lowbed low bed semi-trailer

IF YOU WISH, CONTRACT MANUFACTURING FOR YOUR BRAND OR DEALERSHIP AGREEMENTS FOR YOUR OWN BRAND.
WE ARE LOOKING FORWARD TO WORKING WITH YOU. !

WE ARE THE ONLY COMPANY IN Türkiye AND THE WORLD THAT PROVIDES A 20-YEAR WARRANTY AGAINST AGING. YES, WE ARE ASSERTIVE ON THIS MATTER, YOU HEARED WRONG.

AS THE FIRST AND ONLY COMPANY OWNER IN TURKEY, WE ARE THE ONLY BUSINESS WITH THE TITLE OF MECHANICAL ENGINEER. FOR THIS REASON, IT IS A NEW DYNAMIC AND POWERFUL COMPANY THAT ALWAYS THINK INNOVATIVE, IMPLEMENTS THE TRAININGS RECEIVED IN COOPERATION WITH UNIVERSITIES IN THE FIELD, CONTINUES ITS PRODUCTION IN ACCORDANCE WITH STATIC AND DYNAMIC PRINCIPLES AND ATTACHES IMPORTANCE TO R&D TO BECOME A WORLD BRAND. WE ARE NOT A BUSINESS.

KING PIN:
* 2 inch or 3.5 inch

TIRES AND WHEELS:
*245/70 R/17.5 rim tires will be used. 12+(1 spare tire) total 13 tire brands will depend on customer preference. Different brands of tires can be installed according to customer demand. Price may vary. Pendle Axle axles: 4 tires for each axle and 24+ in total (1 spare tire)

PAINT:
* For better penetration of the paint, 1 layer of anti-rust paint and 2 layers of high quality paint are applied after all surfaces are sandblasted.

ELECTRICALSYSTEM:
* 2x7 Pin, SAE Standard, SABA brand LED lighting system is used.
* 7-function LED rear tail lights (with warning horn)
* 2 SABA brand white LED illuminated front headlights
* 9 x 2 SABA brand yellow LED illuminated side lamps
* 2 SABA brand traffic plate lights
* 2 LED reversing lights
* 2 LED rotating lights
* 10 side mounted lamps

OTHER FEATURES:
* 25 cm x 2 side expandable BRACKETS OR hydraulic side expandable middle pool can be selected.
* 1 lockable electrical unit access cover
* Vehicle loading diagram and description
* Signs and stickers
* 1 fire extinguisher box
* Protected electrical unit
* Spare wheel holder and spare tire
* 4 sliding warning reflectors
* 10 forged 10-ton ship rings on the platform and 6 forged 10-ton ship rings on the gooseneck.

HYDRAULIC POWER UNIT AND COUPLING:
* 24 VOLT 4.7 KW 27 lt/min. Hydraulic power unit and coupling

SHEET QUALITY:
* EXTENSION BOOMS (MALE & FEMALE) MIDDLE POOL COMPONENTS AND GOOSNECK CHASSIS MIRROR SHEET AND ALL COMPONENTS WILL BE MANUFACTURED FROM ULTRA HIGH RESISTANCE SSAB S700MC PLUS SHEET METAL AND SHEET CERTIFICATES SHOULD BE SUBMITTED TO THE BUYING COMPANY AT THE DELIVERY OF THE PRODUCT. THE COPY WILL BE HAND DELIVERED TO THE BUYER COMPANY.



OUR COMPANY IS BASED ON THE COMPLETE STATIC RESISTANCE FOCUSED PRODUCTION OF THIS VEHICLE.

WE GUARANTEE 60 TONS OF LOADED WEIGHT.

THIS PRODUCT IS A LAUNCH PRODUCT, WHICH ONLY HIGH MECHANICAL ENGINEERS WERE INVOLVED IN ITS DESIGN.

THE PRODUCT IS THE LAUNCH COLOR AND 3 DIFFERENT COLORS ARE USED ON IT.

WE HAVE A 2 YEAR WARRANTY AGAINST MECHANICAL FAILURES. (REPAIR, RENOVATION AND CHANGE)

IT HAS A EUROPEAN SYSTEM CHASSIS STRUCTURE AND HAS THE SAME QUALITY AS THE EQUIVALENT PRODUCTS OF WORLD-FAMOUS BRANDS.

ALL UNDERCARRIAGE AND ACCESSORIES ARE SCREW SYSTEM AND ARE DESIGNED AS REMOVABLE. THE BENEFITS IT PROVIDES TO THE USER ARE INCLUDING IT'S POSSIBILITY FOR CHANGE AND REVISION, PROVIDING SPARE PARTS IN CASE OF ANY DEFORMATION, AND THANKS TO THE ASSEMBLY SCHEME WE WILL SEND TO OUR CUSTOMERS, THEY CAN DISASSEMBLE AND INSTALL IT THEMSELVES WITHOUT GOING TO THE INDUSTRY. AMONG THE FACILITIES PROVIDED.

SCREWED (REMOVABLE AND INSTALLABLE) PARTS: FRONT BOLLARDS, FRONT BUMPER, COVERS, SIDE RAILS, MUDGUARDS, SIDE WOCKS, BRAKE SYSTEM PANEL, SIDE LIGHTING LAMP LOCATIONS, SPARE BOARD HOLDER, STRETCHES, FRONT PANEL, LICENSE PLATE RACK, TEXT PLATES, WHEEL TOP ACCESS COVERS, POWER PACK UNIT TRANSPORT COVERS AND MORE ARE COMPLETELY DISASSEMBLED.

The vehicle can be controlled with the help of remote control. In this way, hydraulic systems and axle lifting system can be controlled from a distance of up to 200 meters.

No matter where the vehicle is in the world, thanks to the PLC panel that is adaptive to the wifi network placed on the vehicle. It will be produced in accordance with advanced technology so that we can provide technical support to you, our valued users, in technical support, fault detection and programming via remote connection. It is an expandable feature and the systems developed as a result of R&D studies can be integrated into the lowbed. In this way, we aim for a sustainable plan.


It is designed in accordance with the Ackermann Principle to control the rotation angle.

This product, in which only mechanical engineers were involved in the design, was put into production after all static analyzes were completed.

Thanks to its unique design, it provides superior performance in the harshest conditions and under load.

max. The turning angle is 46 degrees.

It is designed as front loading.

The total thrust force of the hydraulic gooseneck pistons corresponds to 340 tons.

It was produced with a safety factor of 1 to 2. The hydraulic system safety coefficient is 1 to 6.

It can perform hydraulic steering on 3 axes.

ERICH JAEGER brand was used for all jacks, NATO plugs and couplings on the vehicle.

It is remote controlled and there is a manual control panel on the vehicle.

It has a closed medium pool length of 7830 mm.

The extension is 5000 mm and the extension is made gradually every 1 meter with the help of emergency brake chamber.

The total open platform length is 12830 mm.

The vehicle width is 3000 mm and 250 mm side expansion brackets are available.

Total width with brackets open is 3500 mm.

The connection of the platform to the axle group section is with shims and is made for the purpose of providing extra flexibility and parallelism to the ground when open and closed on the road.

All components of the vehicle are made of S700 MC (domex) material.

* HYDRAULIC CAMEL NECK - HYDRAULIC STEERING - EXTENDABLE - WITH POOL - FULL AUTOMATION LOWBED
* IT CAN BE PROVIDED WITH A 1 OR 2 AXS DOLLY IF NECESSARY.
* REMOTE CONTROL SYSTEMS & REMOTE TECHNICAL SUPPORT NETWORK

LOADING CAPACITY:
* Loaded weight 60,000 kg

AXLE VESUSPENSION SYSTEM:
*3 x 12 Ton Axles (jumbo Type) OR 6 x 10 Ton PENDLE AXLES - all axles are hydraulically steered axles.
*Domestic or Foreign Brand Axle *Different brand axles can be used according to customer demand. Price varies*
*Air suspension system and hydraulic suspension systems may be preferred.

MATERIAL CABINET:
* There are 4 cabinets on the right and left sides of the camel neck.

CAMEL NECK:
* Designed for both single-wheel drive and double-wheel drive tractors. There is 1 king pin table and depending on the tractor selection, the plate height can be controlled by the positioner gooseneck and brought to the single and double goose plate height level. There is a hydraulic cylinder mechanism to fix the gooseneck on the towing vehicle and to position it during the removal and installation phase. There are 2 load holding and platform level adjustment pistons to adjust the middle platform height. There are regional cemented cylinders with 4140 material quality. S690 QL PLATINATES The holder PLATINATES are 150 mm.

LOADING BASIS:
* Designed as front loading.

BRAKE SYSTEM:
* 2S2M EBS complies with EU norms. (WABCO BRAND)
*ABS
